C# Discord Bot: Command Handling

This post will go over command handling with Discord.Net. Whether you are following along from the Raspberry Pi series, or are just curious about how to do command handling with Discord.Net, welcome!

I am currently in the process of updating this guide to use the new /Slash Command implementation, as you will need a new intent to use the old way (having the bot parse messages)

Prerequisites

• .NET 6.x

• …and we will be building upon the framework laid out here:

If you want to follow along with the finished code, go here: https://github.com/gngrninja/csharpi/tree/02-command-basics.

If you would like the starter code, and want to try building off of it yourself, go here: https://github.com/gngrninja/csharpi/tree/intro.

To keep up with Discord.Net examples and specifics, their repo has code samples: Discord.Net/samples at dev · discord-net/Discord.Net (github.com)

Navigation

• Adding the command handling service

  • Service creation

  • Editing config.json to add your Discord guild(server) id

• Adding services via dependency injection

• Writing our first real, robust command

  • 8-Ball

• Getting it all to work on our Raspberry Pi

  • Changing the branch we are working with in Git

  • Pulling down the new code and testing it

    • Editing the config.json file and copying it to the right destinations

    • Testing code from the Git repo

  • Publishing the code to the ~/bot directory and running it there

• Conclusion

Adding the Command Handler

The first thing we’ll want to do is add the command handling service.

This service will be responsible for:

• Hooking into the SlashCommandExecuted, ContextCommandExecuted, and ComponentCommandExecuted events to process commands as they come in (to see if they are a valid command), and handle command execution (success/failure/not found actions)

• Utilizing Dependency Injection in .NET to setup and pass through services/configurations

• Loading all the command modules that inherit from InteractionModuleBase

Command Handler Service Creation

The first thing we want to do here is create the command handling service.

1. Create a folder named Services, and under that folder a file named CommandHandler.cs.

2. Here is the code for the command handling service, with comments to help understand what is happening (don’t worry too much about not understanding what is happening, yet!):

You can always view the most updated code, here: https://github.com/gngrninja/csharpi/blob/02-command-basics/Services/CommandHandler.cs.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147

using Discord; using Discord.Interactions; using Discord.WebSocket; using System; using System.Collections.Generic; using System.Linq; using System.Reflection; using System.Text; using System.Threading.Tasks; namespace csharpi.Services { public class CommandHandler { private readonly DiscordSocketClient _client; private readonly InteractionService _commands; private readonly IServiceProvider _services; public CommandHandler(DiscordSocketClient client, InteractionService commands, IServiceProvider services) { _client = client; _commands = commands; _services = services; } public async Task InitializeAsync() { // add the public modules that inherit InteractionModuleBase<T> to the InteractionService await _commands.AddModulesAsync(Assembly.GetEntryAssembly(), _services); // process the InteractionCreated payloads to execute Interactions commands _client.InteractionCreated += HandleInteraction; // process the command execution results _commands.SlashCommandExecuted += SlashCommandExecuted; _commands.ContextCommandExecuted += ContextCommandExecuted; _commands.ComponentCommandExecuted += ComponentCommandExecuted; } private Task ComponentCommandExecuted(ComponentCommandInfo arg1, Discord.IInteractionContext arg2, IResult arg3) { if (!arg3.IsSuccess) { switch (arg3.Error) { case InteractionCommandError.UnmetPrecondition: // implement break; case InteractionCommandError.UnknownCommand: // implement break; case InteractionCommandError.BadArgs: // implement break; case InteractionCommandError.Exception: // implement break; case InteractionCommandError.Unsuccessful: // implement break; default: break; } } return Task.CompletedTask; } private Task ContextCommandExecuted(ContextCommandInfo arg1, Discord.IInteractionContext arg2, IResult arg3) { if (!arg3.IsSuccess) { switch (arg3.Error) { case InteractionCommandError.UnmetPrecondition: // implement break; case InteractionCommandError.UnknownCommand: // implement break; case InteractionCommandError.BadArgs: // implement break; case InteractionCommandError.Exception: // implement break; case InteractionCommandError.Unsuccessful: // implement break; default: break; } } return Task.CompletedTask; } private Task SlashCommandExecuted(SlashCommandInfo arg1, Discord.IInteractionContext arg2, IResult arg3) { if (!arg3.IsSuccess) { switch (arg3.Error) { case InteractionCommandError.UnmetPrecondition: // implement break; case InteractionCommandError.UnknownCommand: // implement break; case InteractionCommandError.BadArgs: // implement break; case InteractionCommandError.Exception: // implement break; case InteractionCommandError.Unsuccessful: // implement break; default: break; } } return Task.CompletedTask; } private async Task HandleInteraction (SocketInteraction arg) { try { // create an execution context that matches the generic type parameter of your InteractionModuleBase<T> modules var ctx = new SocketInteractionContext(_client, arg); await _commands.ExecuteCommandAsync(ctx, _services); } catch (Exception ex) { Console.WriteLine(ex); // if a Slash Command execution fails it is most likely that the original interaction acknowledgement will persist. It is a good idea to delete the original // response, or at least let the user know that something went wrong during the command execution. if(arg.Type == InteractionType.ApplicationCommand) { await arg.GetOriginalResponseAsync().ContinueWith(async (msg) => await msg.Result.DeleteAsync()); } } } } }

[top]

Adding your test Discord guild id to config.json

Remember :

• When debugging you want the config.json file in /bin/Debug/net6.0/

• When running the bot normally via dotnet projectname.dll, you want the config.json file in the root folder (same folder as the .dll/executable)

You can find your Discord guild(server) id by right clicking on your server name, and going to Copy ID

To add the Guild id, your config.json should look like this:

{
    "Token":  "ThIsIsNtMyToKeN",
    "TestGuildId": "123456789101112131415"
}

Now what we have created our CommandHandler service, let’s wire up Program.cs to enable dependency injection and use it.

[top]

Adding Dependency Injection

Add NuGet Package for Dependency Injection

When using the Discord.Net v3.2.0 library, I noticed that I had to manually add the Dependency Injection package. To do this, drop down to your command line, navigate to the project folder, and run:

dotnet add package Microsoft.Extensions.DependencyInjection --version 6.0.0
dotnet restore

Next we’ll want to modify Program.cs to add dependency injection.

What we need to do in Program.cs:

• Add a using statement to gain access to the service we created
  - For this example that’s using chsarpi.Services;

• Create a method that will construct the dependency injection model / ServicesProvider for the model we can consume later (ConfigureServices)

• Call upon and use the ConfigureServices method, and work with the bot code via dependency injection

Below is the sample code to achieve what I’ve gone over above:

You can always view the most updated code, here: https://github.com/gngrninja/csharpi/blob/02-command-basics/Program.cs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116

using System; using Discord; using Discord.Net; using Discord.Commands; using Discord.Interactions; using Discord.WebSocket; using System.Threading.Tasks; using Microsoft.Extensions.Configuration; using Microsoft.Extensions.Configuration.Json; using Microsoft.Extensions.DependencyInjection; using csharpi.Services; using System.Threading; namespace csharpi { class Program { // setup our fields we assign later private readonly IConfiguration _config; private DiscordSocketClient _client; private InteractionService _commands; private ulong _testGuildId; public static Task Main(string[] args) => new Program().MainAsync(); public async Task MainAsync(string[] args) { } public Program() { // create the configuration var _builder = new ConfigurationBuilder() .SetBasePath(AppContext.BaseDirectory) .AddJsonFile(path: "config.json"); // build the configuration and assign to _config _config = _builder.Build(); _testGuildId = ulong.Parse(_config["TestGuildId"]); } public async Task MainAsync() { // call ConfigureServices to create the ServiceCollection/Provider for passing around the services using (var services = ConfigureServices()) { // get the client and assign to client // you get the services via GetRequiredService<T> var client = services.GetRequiredService<DiscordSocketClient>(); var commands = services.GetRequiredService<InteractionService>(); _client = client; _commands = commands; // setup logging and the ready event client.Log += LogAsync; commands.Log += LogAsync; client.Ready += ReadyAsync; // this is where we get the Token value from the configuration file, and start the bot await client.LoginAsync(TokenType.Bot, _config["Token"]); await client.StartAsync(); // we get the CommandHandler class here and call the InitializeAsync method to start things up for the CommandHandler service await services.GetRequiredService<CommandHandler>().InitializeAsync(); await Task.Delay(Timeout.Infinite); } } private Task LogAsync(LogMessage log) { Console.WriteLine(log.ToString()); return Task.CompletedTask; } private async Task ReadyAsync() { if (IsDebug()) { // this is where you put the id of the test discord guild System.Console.WriteLine($"In debug mode, adding commands to {_testGuildId}..."); await _commands.RegisterCommandsToGuildAsync(_testGuildId); } else { // this method will add commands globally, but can take around an hour await _commands.RegisterCommandsGloballyAsync(true); } Console.WriteLine($"Connected as -> [{_client.CurrentUser}] :)"); } // this method handles the ServiceCollection creation/configuration, and builds out the service provider we can call on later private ServiceProvider ConfigureServices() { // this returns a ServiceProvider that is used later to call for those services // we can add types we have access to here, hence adding the new using statement: // using csharpi.Services; return new ServiceCollection() .AddSingleton(_config) .AddSingleton<DiscordSocketClient>() .AddSingleton(x => new InteractionService(x.GetRequiredService<DiscordSocketClient>())) .AddSingleton<CommandHandler>() .BuildServiceProvider(); } static bool IsDebug ( ) { #if DEBUG return true; #else return false; #endif } } }

Now that we’re wired up to use dependency injection, and have our service created to handle commands, let’s create our first set of commands (the right way!).

[top]

Writing Robust Commands

In this section we will be writing our first real, robust command. Writing commands this way gives us access to Discord.Net’s command writing goodness.

1. Create a folder named Modules, and under that folder a file named ExampleCommands.cs.

ExampleCommands will contain our first command using this framework!

Below I have some code that will get us started with an 8-ball command:

You can always find the most up to date code, here: https://github.com/gngrninja/csharpi/blob/02-command-basics/Modules/ExampleCommands.cs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

using Discord; using Discord.Interactions; using Discord.WebSocket; using System; using System.Collections.Generic; using System.Linq; using System.Text; using System.Threading.Tasks; namespace csharpi.Services { // interation modules must be public and inherit from an IInterationModuleBase public class ExampleCommands : InteractionModuleBase<SocketInteractionContext> { // dependencies can be accessed through Property injection, public properties with public setters will be set by the service provider public InteractionService Commands { get; set; } private CommandHandler _handler; // constructor injection is also a valid way to access the dependecies public ExampleCommands (CommandHandler handler) { _handler = handler; } // our first /command! [SlashCommand("8ball", "find your answer!")] public async Task EightBall(string question) { // create a list of possible replies var replies = new List<string>(); // add our possible replies replies.Add("yes"); replies.Add("no"); replies.Add("maybe"); replies.Add("hazzzzy...."); // get the answer var answer = replies[new Random().Next(replies.Count - 1)]; // reply with the answer await RespondAsync($"You asked: [**{question}**], and your answer is: [**{answer}**]"); } } }

That’s it! Now we’re ready to debug/test to see if it is all working!

Remember it is F5 in VS Code, or you can use [Debug] -> [Start Debugging] from the menu bar.

8-Ball Command

Now that the bot is running, we can test our 8-ball command.

Go into the server your bot is in, and type the following:

/8
The command should show up as an autocomplete, and if you hit enter it will ask for the question:

Type out your question, and hit enter!

[top]

Getting it Working on the Pi

To get this working on our Raspberry Pi we will simply need to push the updated code to the Github repo, and pull it down to the Pi. We will need to update our config.json on the Pi, and copy it to the debug folder, as well as the bot folder (after we’ve added the Prefix line). If you’d like more information on getting the initial setup done with the Raspberry Pi, visit the below post and check out it’s prerequisites as well!

The below steps all assume we are sshed into our Pi.

Switching Branches on Git

If you are following along, and want to use my Github repo as reference, you must ensure you’re working with the proper branch for this post.

First you’ll want to get into the directory:

cd csharpi

Then, you want to run:

git checkout 02-command-basics

git pull

You can see here we are in the intro branch, and we need to switch it up!

Pi config.json Editing

Now that we have the latest code on the Pi (refresher here if you’re using your own repo), let’s edit the config.json file to add the command prefix we want to use.

You’ll want to be in the cloned git repo’s directory, and assuming you have the base config created there from the linked post above, run (if you don’t, create it by using touch config.json):

nano config.json

In this file we want to ensure the Token and TestGuildId are there as such:

{
    "Token":  "ThIsIsNtMyToKeN",
    "TestGuildId": ";"
}

Use the following sequence to save the contents:

CTRL+O
[Enter]
CTRL+X

Now let’s copy that to the debug folder so we can test/debug the code, and to the bot’s published location:

cp config.json bin/Debug/net6.0/
cp config.json ~/bot

Let’s test the code from the Git repo…

Test Code From Repo

Now that we copied the new config.json file over to the Debug folder, we can test things out. Ensure you’re in the repo’s folder and run (remember, this method of running the bot takes a while to start):

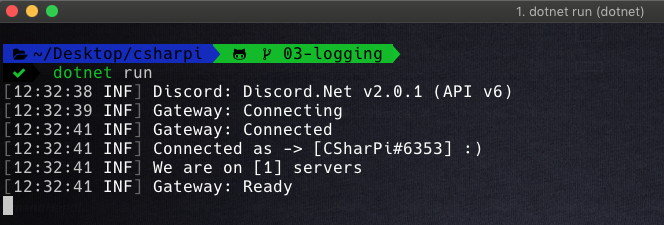

dotnet run

Now to run a command in Discord just to be sure…

Success! Now to get it published and run it properly.

Running Published Code on Pi

Let’s get things published and running smoothly! To start out, ensure you are in the git repo’s folder and run:

dotnet publish -o ~/bot

Then you’ll want to get into the bot’s folder:

cd ~/bot

And finally, you can run:

dotnet csharpi.dll

Looks good, but one more test with Discord to really be sure!

Looks like we’re all set.

accuracy of 8-ball is not guaranteed

[top]

Conclusion

In this post we added some proper command handling to our Discord bot.
Feel free to change things around and see what you can make happen (or break and fix… break + fix = learn, right?).

In the next part of this series, we will add proper logging to the bot.
If you have any questions or comments, leave them below!

C# Discord Bot: Adding a Database

Welcome

A database can be used to store and retrieve data that can make your bot even more robust. In this post, I will be going over how to create a database, and use it to expand our 8Ball command.

Prerequisites

• .NET Core 3.x

• A fundamental understanding of the Discord.Net library, or following along step-by-step with (if you’re working on a local bot, just omit the Raspberry Pi steps!):

Navigation

• Setting things up

• Creating our database model

• Creating the database

• Taking a peek at the DB

• Add Eight Ball Commands

• Test it all out

• Conclusion

Setting things up

This post will be building off of the code found in the logging post, found here: https://github.com/gngrninja/csharpi/tree/04-efdb

If you‘d like to go through the logging post first, check that out as well, here:

Let’s add the package we’ll need to get started using EF Core w/sqlite.

Drop down to a console, navigate to your project folder, and run:

dotnet add package Microsoft.EntityFrameworkCore.Sqlite
dotnet restore

Creating our database model

Now we’ll want to create a model for Entity Framework Core to use when generating the database. The model will be converted into a table.

To do this, we’ll:

• Create a folder in our project root named Database

• In the Database folder, create two files:

  • CsharpiContext.cs

  • EightBallAnswer.cs

Let’s start defining our EightBallAnswer, by adding the following to the EightBallAnswer.cs file:

https://github.com/gngrninja/csharpi/blob/04-efdb/Database/EightBallAnswer.cs

1 2 3 4 5 6 7 8 9 10 11 12 13

using System; using System.ComponentModel.DataAnnotations; namespace csharpi.Database { public partial class EightBallAnswer { [Key] public long AnswerId { get; set; } public string AnswerText { get; set; } public string AnswerColor { get; set; } } }

Now we can create our DbSet in CsharpEntities.cs, which will tell EF Core what we want our database to look like:

https://github.com/gngrninja/csharpi/blob/04-efdb/Database/CsharpiEntities.cs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

using Microsoft.Data.Sqlite; using Microsoft.EntityFrameworkCore; namespace csharpi.Database { public partial class CsharpiEntities : DbContext { public virtual DbSet<EightBallAnswer> EightBallAnswer { get; set; } protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder) { var connectionStringBuilder = new SqliteConnectionStringBuilder { DataSource = "csharpi.db" }; var connectionString = connectionStringBuilder.ToString(); var connection = new SqliteConnection(connectionString); optionsBuilder.UseSqlite(connection); } } }

Now let’s add some pieces to our Program.cs file:

At the top:

using csharpi.Database;

And to inject the DB Context via Dependency Injection:

.AddDbContext<CsharpiEntities>()

That will make Program.cs look like this:

https://github.com/gngrninja/csharpi/blob/intro/Program.cs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137

using System; using Discord; using Discord.Net; using Discord.Commands; using Discord.WebSocket; using System.Threading.Tasks; using Microsoft.Extensions.Configuration; using Microsoft.Extensions.Logging; using Microsoft.Extensions.DependencyInjection; using csharpi.Services; using System.Linq; using Serilog; using csharpi.Database; namespace csharpi { class Program { // setup our fields we assign later private readonly IConfiguration _config; private DiscordSocketClient _client; private static string _logLevel; static void Main(string[] args = null) { if (args.Count() != 0) { _logLevel = args[0]; } Log.Logger = new LoggerConfiguration() .WriteTo.File("logs/csharpi.log", rollingInterval: RollingInterval.Day) .WriteTo.Console() .CreateLogger(); new Program().MainAsync().GetAwaiter().GetResult(); } public Program() { // create the configuration var _builder = new ConfigurationBuilder() .SetBasePath(AppContext.BaseDirectory) .AddJsonFile(path: "config.json"); // build the configuration and assign to _config _config = _builder.Build(); } public async Task MainAsync() { // call ConfigureServices to create the ServiceCollection/Provider for passing around the services using (var services = ConfigureServices()) { // get the client and assign to client // you get the services via GetRequiredService<T> var client = services.GetRequiredService<DiscordSocketClient>(); _client = client; // setup logging and the ready event services.GetRequiredService<LoggingService>(); // this is where we get the Token value from the configuration file, and start the bot await client.LoginAsync(TokenType.Bot, _config["Token"]); await client.StartAsync(); // we get the CommandHandler class here and call the InitializeAsync method to start things up for the CommandHandler service await services.GetRequiredService<CommandHandler>().InitializeAsync(); await Task.Delay(-1); } } private Task LogAsync(LogMessage log) { Console.WriteLine(log.ToString()); return Task.CompletedTask; } private Task ReadyAsync() { Console.WriteLine($"Connected as -> [{_client.CurrentUser}] :)"); return Task.CompletedTask; } // this method handles the ServiceCollection creation/configuration, and builds out the service provider we can call on later private ServiceProvider ConfigureServices() { // this returns a ServiceProvider that is used later to call for those services // we can add types we have access to here, hence adding the new using statement: // using csharpi.Services; // the config we build is also added, which comes in handy for setting the command prefix! var services = new ServiceCollection() .AddSingleton(_config) .AddSingleton<DiscordSocketClient>() .AddSingleton<CommandService>() .AddSingleton<CommandHandler>() .AddSingleton<LoggingService>() .AddDbContext<CsharpiEntities>() .AddLogging(configure => configure.AddSerilog()); if (!string.IsNullOrEmpty(_logLevel)) { switch (_logLevel.ToLower()) { case "info": { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Information); break; } case "error": { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Error); break; } case "debug": { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Debug); break; } default: { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Error); break; } } } else { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Information); } var serviceProvider = services.BuildServiceProvider(); return serviceProvider; } } }

Create the Database File

Now that we’ve defined what we want our database to look like, we can run some commands to get it created. Run these commands while in the root of your project folder:

1. Install tooling for EF in .NET Core

   dotnet tool install --global dotnet-ef
   dotnet add package Microsoft.EntityFrameworkCore.Design

2. Create the database using our model

   dotnet ef migrations add InitialCreate
   dotnet ef database update

If all went well, you should see a new file named csharpi.db:

Taking a peek at the DB

To take a look and verify the database was created as per our defined model, you can use this tool: https://sqlitebrowser.org/

Here is what the file I created looks like:

Add Eight Ball Commands

Now we will want to add some commands to the bot that will allow us to:

• Add an answer w/associated color to the database

• List out answers currently in the database

• Remove an answer from the database

• Ask the 8Ball a question

The first thing we will want to do is remove the 8Ball command from the Modules/ExampleCommands.cs file. After removing it, ExampleCommands.cs should look like this:

https://github.com/gngrninja/csharpi/blob/04-efdb/Modules/ExampleCommands.cs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

using Discord; using Discord.Net; using Discord.WebSocket; using Discord.Commands; using System; using System.Linq; using System.Text; using System.Threading.Tasks; using System.Collections.Generic; using Microsoft.Extensions.Configuration; namespace csharpi.Modules { // for commands to be available, and have the Context passed to them, we must inherit ModuleBase public class ExampleCommands : ModuleBase { [Command("hello")] public async Task HelloCommand() { // initialize empty string builder for reply var sb = new StringBuilder(); // get user info from the Context var user = Context.User; // build out the reply sb.AppendLine($"You are -> [{user.Username}]"); sb.AppendLine("I must now say, World!"); // send simple string reply await ReplyAsync(sb.ToString()); } } }

The next thing we will do is add all of our eight ball handling commands to a new file in the Modules folder named EightBallCommands.cs

The contents for EightBallCommands.cs should be as follows:

https://github.com/gngrninja/csharpi/blob/04-efdb/Modules/EightBallCommands.cs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210

using Discord; using Discord.Net; using Discord.WebSocket; using Discord.Commands; using System; using System.Linq; using System.Text; using System.Threading.Tasks; using System.Collections.Generic; using Microsoft.Extensions.Configuration; using csharpi.Database; using Microsoft.Extensions.DependencyInjection; namespace csharpi.Modules { // for commands to be available, and have the Context passed to them, we must inherit ModuleBase public class EightBallCommands : ModuleBase { private readonly CsharpiEntities _db; private List<String> _validColors = new List<String>(); private readonly IConfiguration _config; public EightBallCommands(IServiceProvider services) { // we can pass in the db context via depedency injection _db = services.GetRequiredService<CsharpiEntities>(); _config = services.GetRequiredService<IConfiguration>(); _validColors.Add("green"); _validColors.Add("red"); _validColors.Add("blue"); } [Command("add")] public async Task AddResponse(string answer, string color) { var sb = new StringBuilder(); var embed = new EmbedBuilder(); // get user info from the Context var user = Context.User; // check to see if the color is valid if (!_validColors.Contains(color.ToLower())) { sb.AppendLine($"**Sorry, [{user.Username}], you must specify a valid color.**"); sb.AppendLine("Valid colors are:"); sb.AppendLine(); foreach (var validColor in _validColors) { sb.AppendLine($"{validColor}"); } embed.Color = new Color(255, 0, 0); } else { // add answer/color to table await _db.AddAsync(new EightBallAnswer { AnswerText = answer, AnswerColor = color.ToLower() } ); // save changes to database await _db.SaveChangesAsync(); sb.AppendLine(); sb.AppendLine("**Added answer:**"); sb.AppendLine(answer); sb.AppendLine(); sb.AppendLine("**With color:**"); sb.AppendLine(color); embed.Color = new Color(0, 255, 0); } // set embed embed.Title = "Eight Ball Answer Addition"; embed.Description = sb.ToString(); // send embed reply await ReplyAsync(null, false, embed.Build()); } [Command("list")] public async Task ListAnswers() { var sb = new StringBuilder(); var embed = new EmbedBuilder(); // get user info from the Context var user = Context.User; var answers = await _db.EightBallAnswer.ToListAsync(); if (answers.Count > 0) { foreach (var answer in answers) { sb.AppendLine($":small_blue_diamond: [{answer.AnswerId}] **{answer.AnswerText}**"); } } else { sb.AppendLine("No answers found!"); } // set embed embed.Title = "Eight Ball Answer List"; embed.Description = sb.ToString(); // send embed reply await ReplyAsync(null, false, embed.Build()); } [Command("remove")] public async Task RemoveAnswer(int id) { var sb = new StringBuilder(); var embed = new EmbedBuilder(); // get user info from the Context var user = Context.User; var answers = await _db.EightBallAnswer.ToListAsync(); var answerToRemove = answers.Where(a => a.AnswerId == id).FirstOrDefault(); if (answerToRemove != null) { _db.Remove(answerToRemove); await _db.SaveChangesAsync(); sb.AppendLine($"Removed answer -> [{answerToRemove.AnswerText}]"); } else { sb.AppendLine($"Did not find answer with id [**{id}**] in the database"); sb.AppendLine($"Perhaps use the {_config["prefix"]}list command to list out answers"); } // set embed embed.Title = "Eight Ball Answer List"; embed.Description = sb.ToString(); // send embed reply await ReplyAsync(null, false, embed.Build()); } [Command("8ball")] [Alias("ask")] public async Task AskEightBall([Remainder]string args = null) { // I like using StringBuilder to build out the reply var sb = new StringBuilder(); // let's use an embed for this one! var embed = new EmbedBuilder(); // add our possible replies from the database var replies = await _db.EightBallAnswer.ToListAsync(); // add a title embed.Title = "Welcome to the 8-ball!"; // we can get lots of information from the Context that is passed into the commands // here I'm setting up the preface with the user's name and a comma sb.AppendLine($"{Context.User.Username},"); sb.AppendLine(); // let's make sure the supplied question isn't null if (args == null) { // if no question is asked (args are null), reply with the below text sb.AppendLine("Sorry, can't answer a question you didn't ask!"); } else { // if we have a question, let's give an answer! // get a random number to index our list with var answer = replies[new Random().Next(replies.Count)]; // build out our reply with the handy StringBuilder sb.AppendLine($"You asked: [**{args}**]..."); sb.AppendLine(); sb.AppendLine($"...your answer is [**{answer.AnswerText}**]"); switch (answer.AnswerColor) { case "red": { embed.WithColor(255, 0, 0); break; } case "blue": { embed.WithColor(0, 0, 255); break; } case "green": { embed.WithColor(0, 255, 0); break; } } } // now we can assign the description of the embed to the contents of the StringBuilder we created embed.Description = sb.ToString(); // this will reply with the embed await ReplyAsync(null, false, embed.Build()); } } }

Testing it out

Let’s test it out!

Adding answers

+add "yes!" "green"
+add "that's a no, bob!" "red"
+add "I dono" "blue"

Listing answers

+list

Removing answers

+remove 3

Asking a question

+8ball is the sky blue?

I asked it a couple times so I could see the different responses and color changes.

Conclusion

This is a very basic example of what you can do with a simple database, created via code, for your Discord Bot to use. If you have any questions or feedback, please leave a comment below!

C# Discord Bot: Logging All The Things

Welcome

No matter what you're using your bot for, more likely than not you'll want to know what the heck is happening at some point. Luckily, we can add a logging service to get this done.

In this post I will be going over how to use Serilog, along with Microsoft’s logging framework/interface to wrap it up for dependency injection. The logging done will be to the console, as well as to a file.

The starting point I will be using is from the prerequisites portion, if you want to follow along and build it out as you go.

• Code starting point

• Finished code

Prerequisites

• .NET Core 3.x

• A fundamental understanding of the Discord.Net library, or following along step-by-step with (if you’re working on a local bot, just omit the Raspberry Pi steps!):

Navigation

• Adding required packages

• Modifying Program.cs, adding logging via Dependency Injection

• Adding a logging service to handle Discord.Net commands/events

• Example of adding logging to an existing class (CommandHandler)

• Testing it out

• Conclusion

Adding Required Packages

The first thing we will want to do is add the packages we need to take care of logging.

Here is the list of packages we will need:

Microsoft.Extensions.Logging.Debug Microsoft.Extensions.Logging.Console Microsoft.Extensions.Logging Serilog.Sinks.File Serilog.Sinks.Console Serilog.AspNetCore

We can use the dotnet add package command to get them added.

dotnet add package Microsoft.Extensions.Logging.Debug dotnet add package Microsoft.Extensions.Logging.Console dotnet add package Microsoft.Extensions.Logging dotnet add package Serilog.Sinks.File dotnet add package Serilog.Sinks.Console dotnet add package Serilog.AspNetCore

**Note**
Make sure you are in the csharpi project’s or your own project’s root folder when doing this (the one with the .csproj file in it).

Now that we have the required packages added, we can move on to modifying Program.cs to add some logging goodness!

Modifying Program.cs

The next step will be to modify Program.cs to setup and use logging.
We will be:

• Adding using statements to bring in the namespaces we need

• Setting up the Serilog logger with a few options

• Adding logging to the services provided by dependency injection

• Invoke the logger

Using Statements

We will need to add the following using statements to Program.cs:

1 2	using Serilog; using Microsoft.Extensions.Logging;

Modifying the main method to add logging options

Now we will want to add some code to the main method to configure the logger.

• We will null out the args parameter so we can better take input

• An if statement will be added to see if an argument was passed to set the logging level

• The Serilog logger will be created with the options we specify

1 2 3 4 5 6 7 8 9 10 11 12 13

static void Main(string[] args = null) { if (args.Count() != 0) { _logLevel = args[0]; } Log.Logger = new LoggerConfiguration() .WriteTo.File("logs/csharpi.log", rollingInterval: RollingInterval.Day) .WriteTo.Console() .CreateLogger(); new Program().MainAsync().GetAwaiter().GetResult(); }

A note on Log.logger

The Log.Logger portion of the code is what sets up the logging configuration.
In the above example the following options are configured:

• Write out to the console and to a file

• The file will be stored in the logs directory (from the project root), and will create a new file named csharpi.log (feel free to change the directory/file name to suite your needs)

• The files will roll every day, and have each day’s date as a timestamp (Serilog takes care of this magic)

Adding the logger to our service provider / dependency injection

Now we’ll want to change our ConfigureServices method to add logging.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

private ServiceProvider ConfigureServices() { // this returns a ServiceProvider that is used later to call for those services // we can add types we have access to here, hence adding the new using statement: // using csharpi.Services; // the config we build is also added, which comes in handy for setting the command prefix! var services = new ServiceCollection() .AddSingleton(_config) .AddSingleton<DiscordSocketClient>() .AddSingleton<CommandService>() .AddSingleton<CommandHandler>() .AddSingleton<LoggingService>() .AddLogging(configure => configure.AddSerilog()); if (!string.IsNullOrEmpty(_logLevel)) { switch (_logLevel.ToLower()) { case "info": { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Information); break; } case "error": { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Error); break; } case "debug": { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Debug); break; } default: { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Error); break; } } } else { services.Configure<LoggerFilterOptions>(options => options.MinLevel = LogLevel.Information); } var serviceProvider = services.BuildServiceProvider(); return serviceProvider; }

The above method will build out the service provider, and handle some logic in regards to the logging level.

MainAsync method modification

We can now clean up the MainAsync method a bit, here are the new contents (note that the logging hooks are removed, and a simple service retrieval takes its place):

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

public async Task MainAsync() { // call ConfigureServices to create the ServiceCollection/Provider for passing around the services using (var services = ConfigureServices()) { // get the client and assign to client // you get the services via GetRequiredService<T> var client = services.GetRequiredService<DiscordSocketClient>(); _client = client; // setup logging and the ready event services.GetRequiredService<LoggingService>(); // this is where we get the Token value from the configuration file, and start the bot await client.LoginAsync(TokenType.Bot, _config["Token"]); await client.StartAsync(); // we get the CommandHandler class here and call the InitializeAsync method to start things up for the CommandHandler service await services.GetRequiredService<CommandHandler>().InitializeAsync(); await Task.Delay(-1); } }

You can always see the most updated version of this example’s Program.cs file, here: https://github.com/gngrninja/csharpi/blob/03-logging/Program.cs.

**Note**
There is a little chicken and egg here, where we are adding the LoggingService. We will be building that out next!

Adding the LoggingService

The logging service is where we will move the old logging hooks and methods to. This will allow us to remove the following from Program.cs, if it is there:

1 2 3 4 5 6 7 8 9 10 11 12 13 14

client.Log += LogAsync; client.Ready += ReadyAsync; services.GetRequiredService<CommandService>().Log += LogAsync; private Task LogAsync(LogMessage log) { Console.WriteLine(log.ToString()); return Task.CompletedTask; } private Task ReadyAsync() { Console.WriteLine($"Connected as -> [] :)"); return Task.CompletedTask; }

To create the logging service, perform the following steps:

1. Create LoggingService.cs in the Services/ folder

2. Place the following content in the file (to see the most updated code, go here: https://github.com/gngrninja/csharpi/blob/03-logging/Services/LoggingService.cs). Be sure to change the namespace to yourprojectname.Services, if needed

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82

using Discord; using Discord.Commands; using Discord.WebSocket; using System.Threading.Tasks; using Microsoft.Extensions.Logging; using Microsoft.Extensions.DependencyInjection; using System; namespace csharpi.Services { public class LoggingService { // declare the fields used later in this class private readonly ILogger _logger; private readonly DiscordSocketClient _discord; private readonly CommandService _commands; public LoggingService(IServiceProvider services) { // get the services we need via DI, and assign the fields declared above to them _discord = services.GetRequiredService<DiscordSocketClient>(); _commands = services.GetRequiredService<CommandService>(); _logger = services.GetRequiredService<ILogger<LoggingService>>(); // hook into these events with the methods provided below _discord.Ready += OnReadyAsync; _discord.Log += OnLogAsync; _commands.Log += OnLogAsync; } // this method executes on the bot being connected/ready public Task OnReadyAsync() { _logger.LogInformation($"Connected as -> [] :)"); _logger.LogInformation($"We are on [] servers"); return Task.CompletedTask; } // this method switches out the severity level from Discord.Net's API, and logs appropriately public Task OnLogAsync(LogMessage msg) { string logText = $": {msg.Exception?.ToString() ?? msg.Message}"; switch (msg.Severity.ToString()) { case "Critical": { _logger.LogCritical(logText); break; } case "Warning": { _logger.LogWarning(logText); break; } case "Info": { _logger.LogInformation(logText); break; } case "Verbose": { _logger.LogInformation(logText); break; } case "Debug": { _logger.LogDebug(logText); break; } case "Error": { _logger.LogError(logText); break; } } return Task.CompletedTask; } } }

What LoggingService does

• The fields in this class are _logger, _discord, and _commands

• The constructor is what handles the assignment of those fields, and when using Microsoft’s logging interface, we want to assign the _logger field as as ILogger<TypeName>, so in this case ILogger<LoggingService>.

  • This is a nice way to do it, because it abstracts the logging away from implemented framework, which in this case is Serilog. You could change that to a different framework, and this code would stay the same

  • After assigning the fields we hook into the OnReadyAsync and OnLogAsync events, and assign them to the appropriate methods

Now let’s move on the adding logging to an existing service, CommandHandler!

Adding Logging to CommandHandler

This next part here will demonstrate how to add logging to an existing class via dependency injection.

To add logging to the CommandHandler service, we will need to add the following using statement:

using Microsoft.Extensions.Logging;

We’ll then want to create the following field:

private readonly Microsoft.Extensions.Logging.ILogger _logger;

In the constructor, we can assign the logger as we did in the LoggingService, using the type name of this class:

_logger = services.GetRequiredService<ILogger<CommandHandler>>();

Now we can start using _logger, as such:

_logger.LogError($"Command failed to execute for [] <-> []!");

Much better than strictly using System.Console.WriteLine!

Here is the full code for the updated CommandHandler.cs file (to see the most updated code, go here https://github.com/gngrninja/csharpi/blob/03-logging/Services/CommandHandler.cs):

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98

using System; using System.Reflection; using System.Threading.Tasks; using Microsoft.Extensions.DependencyInjection; using Discord; using Discord.Commands; using Discord.WebSocket; using Microsoft.Extensions.Configuration; using Microsoft.Extensions.Logging; namespace csharpi.Services { public class CommandHandler { // setup fields to be set later in the constructor private readonly IConfiguration _config; private readonly CommandService _commands; private readonly DiscordSocketClient _client; private readonly IServiceProvider _services; private readonly Microsoft.Extensions.Logging.ILogger _logger; public CommandHandler(IServiceProvider services) { // juice up the fields with these services // since we passed the services in, we can use GetRequiredService to pass them into the fields set earlier _config = services.GetRequiredService<IConfiguration>(); _commands = services.GetRequiredService<CommandService>(); _client = services.GetRequiredService<DiscordSocketClient>(); _logger = services.GetRequiredService<ILogger<CommandHandler>>(); _services = services; // take action when we execute a command _commands.CommandExecuted += CommandExecutedAsync; // take action when we receive a message (so we can process it, and see if it is a valid command) _client.MessageReceived += MessageReceivedAsync; } public async Task InitializeAsync() { // register modules that are public and inherit ModuleBase<T>. await _commands.AddModulesAsync(Assembly.GetEntryAssembly(), _services); } // this class is where the magic starts, and takes actions upon receiving messages public async Task MessageReceivedAsync(SocketMessage rawMessage) { // ensures we don't process system/other bot messages if (!(rawMessage is SocketUserMessage message)) { return; } if (message.Source != MessageSource.User) { return; } // sets the argument position away from the prefix we set var argPos = 0; // get prefix from the configuration file char prefix = Char.Parse(_config["Prefix"]); // determine if the message has a valid prefix, and adjust argPos based on prefix if (!(message.HasMentionPrefix(_client.CurrentUser, ref argPos) || message.HasCharPrefix(prefix, ref argPos))) { return; } var context = new SocketCommandContext(_client, message); // execute command if one is found that matches await _commands.ExecuteAsync(context, argPos, _services); } public async Task CommandExecutedAsync(Optional<CommandInfo> command, ICommandContext context, IResult result) { // if a command isn't found, log that info to console and exit this method if (!command.IsSpecified) { _logger.LogError($"Command failed to execute for [{context.User.Username}] <-> [{result.ErrorReason}]!"); return; } // log success to the console and exit this method if (result.IsSuccess) { _logger.LogInformation($"Command [{command.Value.Name}] executed for [{context.User.Username}] on [{context.Guild.Name}]"); return; } // failure scenario, let's let the user know await context.Channel.SendMessageAsync($"Sorry, {context.User.Username}... something went wrong -> [{result}]!"); } } }

Testing it all out

Now its time for the fun part, seeing if it all works!

You can either debug it in VS Code (F5), or from a terminal (ensure you are in the project’s folder) and use:

dotnet run

The logging to the console looks good! On the left it shows the log level next to the timestamp, in this case INF means info. Now let’s look in the logs folder for a log file and see its contents.

Awesome! Since we hooked into the CommandHandler, and use the logger now, let’s test a command and see what happens.

Looks good, logged as expected. Now let’s check something that would log as an error (in this case an unknown command):

Changing the log level

The log level can be changed by running the bot with an argument (that is the log level). To change the log level to error (thus not logging anything under the error level such as INF/Info, use:

dotnet run error

Notice we don’t have the information messages anymore. However, if we used an unknown command, it should show an error:

Conclusion

And that’s that. Now we have some logging in place for use with our Discord Bot!

Be sure to add the /logs folder to your .gitignore file, as you likely don’t want those uploaded to GitHub.

Feel free to change things around and see what you can make happen (or break and fix… break + fix = learn, right?).

In the next part of this series, we will add a database to our project!

If you have any questions or comments, leave them below!

[top]

C# Discord Bot on Raspberry Pi: Simple Bot With Config File

CSharPi: Simple Bot With Config File

Now let’s get a Discord bot working on our Pi!

• Create the Discord Bot App, and Invite it to Your Server

• Create the Configuration File to Store the Token

• Add Required Packages

• Update the Program.cs File With Starter Bot Code

• Push the Code to Github

• Update the Code on the Raspberry Pi, and Publish/Run the Bot

• Next part of the series, command handling

Creating the Discord App

We will need a bot token to authenticate the bot and get things going.

1. Login to the developer portal for Discord, here: https://discordapp.com/developers/applications/.

2. Once logged in, click “New Application”, and give it a name.

3. Now click “Bot” on the menu to the left.

4. Click “Add Bot”, and confirm.

5. Now you should see an option to reveal the bot’s token. We will need to get this information shortly.

6. Let’s invite the bot to a Discord server. You will need to be an administrator on the server you want to invite the bot to. To do this, go to the “General Information” option on the menu to the left, and copy the Client ID.

My bot’s client ID is 554549670953615380.

7. Go to https://discordapi.com/permissions.html#3198016, and input your client ID towards the bottom. I’ve added the basic permissions that will be good for this example bot. Feel free to add more if you’d like.

8. The invite URL is the one you see towards the bottom. Go to that link in your browser. For my bot, it is: https://discordapp.com/oauth2/authorize?client_id=554549670953615380&scope=bot&permissions=3198016.

9. Confirm the server you are adding the bot to, and click “Authorize”.

10. You should now see an (offline) bot join your server.

Token in Configuration File

Local Machine

From here on out we will be relying upon the groundwork we laid in this post:

If you haven’t done the setup in that post, but are an advanced user familiar with C# / .NET, carry on. Otherwise, I strongly recommend going through it.

1. Open the csharpi folder in Visual Studio Code on your local machine.

2. Create a new file in the root named config.json

3. Give it the following content:

    {
        "Token":  ""
    }

4. Move the file to the /bin/Debug/netcoreapp3.1 folder (if you are using a different version, it will show up as a different number, such as 2.2 as seen in the screenshot. That is ok, just move the file there instead).
(note) the only reason we are creating this copy is for testing, and when we debug the app it uses this folder as its root folder. We will be creating a separate config.json on the Pi in a moment.

5. Navigate back to https://discordapp.com/developers/applications/, and click the application we made earlier.

6. Click “Bot” from the menu on the left, and then click “Reveal Token”

7. Copy the token and drop it inbetween the quotes in the config.json file.

(note) it is very important you keep your token a secret, and regenerate it if you think anyone else knows it.

Raspberry Pi

1. SSH into your Raspberry Pi

2. Navigate to the published folder we created in part one:

        cd /home/pi/bot

3. Create the configuration file here:

        touch config.json

4. Copy the contents of the file from the one created on your local machine.

5. Open the config.json file in /home/pi/bot on the Pi in nano:

        nano config.json

6. Once the editor is opened, paste in the contents.

7. Use the following sequence to write the contents and exit the editor:

        CTRL+O
        [Enter]
        CTRL+X

8. Verify the file contents via the more command:

        more config.json

Add Required Packages

Now it is time to add required packages to our project. We will need to add the Discord.Net package, and a couple Microsoft configuration packages to help us read and store the configuration file.

1. Open your favorite console / terminal, and navigate to the csharpi project folder on your local machine.

2. Run the following commands:

dotnet add package Discord.Net --version 3.1.0
dotnet add package Microsoft.Extensions.Configuration --version 6.0.0
dotnet add package Microsoft.Extensions.Configuration.Json --version 6.0.0

Add Simple Bot Code

Now we’re going to replace the contents of Program.cs with the simple bot code. This code will be the basis for future posts to come.

1. Open the csharpi folder on your local machine in Visual Studio Code.

2. Replace the contents of Program.cs with the following:
(note) If you did not name your project csharpi, be mindful of the namespace declaration and update yours to match your project name!

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79

using System; using Discord; using Discord.Net; using Discord.Commands; using Discord.WebSocket; using System.Threading.Tasks; using Microsoft.Extensions.Configuration; using Microsoft.Extensions.Configuration.Json; namespace csharpi { class Program { private readonly DiscordSocketClient _client; private readonly IConfiguration _config; public static Task Main(string[] args) => new Program().MainAsync(); public async Task MainAsync(string[] args) { } public Program() { _client = new DiscordSocketClient(); //Hook into log event and write it out to the console _client.Log += Log; //Hook into the client ready event _client.Ready += Ready; //Hook into the message received event, this is how we handle the hello world example _client.MessageReceived += MessageReceivedAsync; //Create the configuration var _builder = new ConfigurationBuilder() .SetBasePath(AppContext.BaseDirectory) .AddJsonFile(path: "config.json"); _config = _builder.Build(); } public async Task MainAsync() { //This is where we get the Token value from the configuration file await _client.LoginAsync(TokenType.Bot, _config["Token"]); await _client.StartAsync(); // Block the program until it is closed. await Task.Delay(-1); } private Task Log(LogMessage log) { Console.WriteLine(log.ToString()); return Task.CompletedTask; } private Task Ready() { Console.WriteLine($"Connected as -> [] :)"); return Task.CompletedTask; } //I wonder if there's a better way to handle commands (spoiler: there is :)) private async Task MessageReceivedAsync(SocketMessage message) { //This ensures we don't loop things by responding to ourselves (as the bot) if (message.Author.Id == _client.CurrentUser.Id) return; if (message.Content == ".hello") { await message.Channel.SendMessageAsync("world!"); } } } }

3. Now that we have the new code for Program.cs, let’s test it by debugging (F5).

4. Now that we verified it is connected and debugging, try sending .hello to the discord server your bot is in, and see what happens (the bot should appear online now!)

Awesome! It works locally. Now let’s work on getting it to the Pi.

Commit New Code to Github

Let’s get our new code committed to Github!

1. Open up the csharpi folder on your local machine with VS Code.

2. The Git icon should show that 2 files have been modified. These are the .csproj file with the required packages we added, and the Program.cs file we modified.

3. Since VS Code is Git-aware, let’s push these changes up to our Github repository.

4. Add a commit message and click the checkmark icon to stage/commit the files.

5. Now click the three dots “…”, and select “Push”.

6. Verify the files have been modified by going to your Github repository’s page:

Update Code on Pi

Now let’s get the updated code on the Raspberry Pi, and publish the app again. After we do that, we can run the updated app and ensure it works as the Discord bot!

1. SSH into your Pi.

2. Navigate to the source code folder /home/pi/csharpi:

    cd /home/pi/csharpi

3. Run:

    git pull

(you should see that some changes have been made)

4. Now let’s publish and run the application (since we already created config.json in /home/pi/bot earlier, it should pick up that file and have the token ready). The first command publishes the application, then we change directory to the published application, and run it.

dotnet publish -o /home/pi/bot
cd /home/pi/bot
dotnet csharpi.dll

(note) The restore/publishing process will take a while, but you only need to run it if your code has changed.

If all goes well, we should see our bot connected message, and we can test it out in the Discord server!

And there you have it, a Discord bot running on a Raspberry Pi, with .NET and C#. The next parts of this series will go over proper command handling (hint: not how we did it here), and more!

C# Discord Bot Series

Next post:

If you have any feedback or questions, feel free to leave a comment below!

C# Discord Bot on Raspberry Pi: Setting Things Up

CSharPi: Getting Started

What if I said it was possible to run a Discord bot on a Raspberry Pi natively? With .NET, we can do just that.

• Getting Started

  • Installing .NET

  • Installing Git

  • Installing Visual Studio Code

• Creating the .Net Project

  • Hello World!

• Initializing the Git Repository

  • Local Initialization

  • Cloning to Pi

Getting Started

Updated for .NET version 6.0!

Let’s get some prerequisites out of the way. The first thing we’ll do is install the .NET SDK on our local machine, as well as our Raspberry Pi. Next, we’ll ensure Git is installed both places as well.

Finally, I will be using Visual Studio Code for this project, so I will go over installing that as well.

If you are familiar with all of these concepts, and have created Discord bots before, feel free to skip to the next part of the series:

Otherwise, carry on!

Installing .NET

Local Machine

Let’s start out by installing the .NET SDK on our local machine. You’ll want to start here, and follow specific instructions for your OS: https://dotnet.microsoft.com/download.

Once installed, you can verify it is working by dropping to the command line (OSX you’ll use Terminal, Windows you want PowerShell, and Linux whatever your favorite shell is), and running: dotnet --help

You should see something like this:

Raspberry Pi

The one prerequisite here is that you can SSH into your Raspberry Pi. If you need some help enabling SSH, check out this article here: https://www.raspberrypi.org/documentation/remote-access/ssh/.

If you’d like to setup your Raspberry Pi headless, and ensure it connects to your WiFi network and automatically enables SSH on first boot, check out my post:

Once you’re sshed in (Windows users that need help check this out: https://learn.adafruit.com/adafruits-raspberry-pi-lesson-6-using-ssh/ssh-under-windows), you can start installing .NET on your Pi.

The following commands will:

1. Navigate to the home directory

2. Download the .NET SDK

3. Create the directory /usr/share/dotnet

4. Uncompress the archive we downloaded into /usr/share/dotnet

5. Create a symbolic link so we can use the dotnet command

cd ~
wget https://download.visualstudio.microsoft.com/download/pr/72888385-910d-4ef3-bae2-c08c28e42af0/59be90572fdcc10766f1baf5ac39529a/dotnet-sdk-6.0.101-linux-arm.tar.gz
sudo mkdir /usr/share/dotnet
sudo tar -zxf dotnet-sdk-6.0.101-linux-arm.tar.gz -C /usr/share/dotnet
sudo ln -s /usr/share/dotnet/dotnet /usr/local/bin/dotnet

If all goes well, we should be able to run: dotnet --version.

Installing Git

Local Machine

Check out this URL for help installing Git on your local machine: https://git-scm.com/book/en/v2/Getting-Started-Installing-Git.

We can verify it works after installing by dropping to your favorite shell and running: git.

Raspberry Pi

If you are using the minimal (lite) version of Raspbian, or need Git installed otherwise, run: sudo apt install git, and accept any prompts with “y”.

Now we can run: git to verify it installed correctly.

Visual Studio Code

Visual Studio Code has become my editor of choice, even for some C# projects. We will install the client onto our local machine so we can edit the code there. For help installing Visual Studio Code, go here: https://code.visualstudio.com.

Once you have Visual Studio Code installed, open it up and click the extensions icon on the left (looks like a square). Then search for and install the C# extension. In this screenshot, it is the only one in the list for me that does not have an install option, and has a gear next to it (since I already have it installed). Once you install it, it will give you the option to reload Visual Studio Code.

Creating the .NET Project

Now we will be creating the .NET project. The machine we will be doing this on is our local machine, not the Pi.

Hello World

Let’s start by creating a dotnet console application.

1. Fire up your favorite shell, and run: dotnet new console -n csharpi.

This will create a new directory named csharpi, and create the project there.

2. Now open up the csharpi folder with Visual Studio Code. You will see a prompt in the lower right-hand corner asking if you want to add required assets, click “Yes”.

If all went well, you will now see a .vscode folder in the list.

3. Now to test things out. Click Program.cs to see the example code the default project provides that will write out “Hello World” to the console. Go to the Debug menu, and click “Start Debugging” (or simply hit F5).

If you see “Hello World”, our project has been created, and we have the ability to edit it in Visual Studio Code.

Git Repository Initialization

Now we will initialize the local instance of the Git repository, and push up our code to Github. If you don’t have an account on Github, you can create one, here: https://github.com/join?source=header-home. Once you create it, log in and hang on because we will be using it shortly.

Local Initialization

1. Open up your favorite terminal / console and navigate to the csharpi folder we created. Once there, run: git init. Keep the window open.

2. Open up the csharpi folder in Visual Studio Code. You’ll notice the Git icon (branching line) has an indicator that there are 22 files to work with. Let’s fix that by creating a file named .gitignore, and tell Git what files we don’t want to commit.

3. Click the File icon in VS Code to see the files in the project, and then click the create new file icon. Name the file .gitignore

4. Open the .gitignore file by clicking it, and add the following contents:

        /bin
        /obj
        *.json

This will tell Git to ignore the /bin and /obj folders, as well as any file ending in .json. Since we will be creating a json configuration file with a token we do not want to share in it later, this is a good thing.

5. Switch back to the terminal / console window you have open and run:

        git add .
        git commit -m 'first for csharpi'

6. Now go to Github and login.

7. Once logged in, click the [+] icon in the upper right, and select “New repository”.

8. On the next page, give it a name and description. Keep it public to follow along with this tutorial. Cloning it will be much easier on the Pi that way.

9. Click “Create repository”, and check out the instructions on the next screen. You’ll see that we completed most of it already.

10. Run the two commands for existing repository.

For me it is (your commands will look similar, with the url after origin reflecting your username and repo name):

            git remote add origin https://github.com/gngrninja/csharpi.git
            git push -u origin master

11. You should now see the following on the command line, and on Github once you refresh the page:

Cloning the Repository to the Pi

Now let’s test that .NET is working correctly on the Pi.

1. Go to your Github repository for this project (for me it is https://github.com/gngrninja/csharpi), and click “Clone or download”, and then copy the URL.

2. SSH into your Raspberry Pi and run git clone, and then paste in the URL we copied from the above step.:

        git clone https://github.com/gngrninja/csharpi.git

3. We can now change directory to csharpi, check out the contents, and try running it (essentially in debug mode):

        cd csharpi
        ls
        dotnet run

4. Debugging on the Pi with .NET is not fun. It takes forever, and is on their list to fix (as much as they can, considering it is not the fastest processor). Eventually, however, you should see the following:

5. Fret not, running the compiled/published application is much faster. To see this happen let’s create a folder under our home folder that will contain the published version of our code.

        mkdir /home/pi/bot

6. The /home/pi/csharpi folder will contain the code we clone from the repo, that we work on from our main machine via VS Code. The /home/pi/bot folder will contain the published version of that code, that executes much faster. Let’s ensure we are in the source code folder, and run the command to publish the app:

        cd /home/pi/csharpi
        dotnet publish -o /home/pi/bot

7. Now that it is published, we can run the application. It will execute much faster as the published version.

        cd /home/pi/bot
        dotnet csharpi.dll

(I know right, running a dll on *nix?!)

Success! We now have the groundwork laid for creating the Discord bot.

Now let’s get a Discord bot going:

Raspberry Pi Headless Setup With WiFi and SSH Enabled

Headless Raspberry Pi Setup With Raspbian

The Raspberry Pi is an awesome little computer that can do just about anything. It’s around $35 USD for the 3B+ model, which is the one I prefer to use most of the time. This post will go over how to install Raspbian, configure WiFi, and enable SSH (all without using a monitor, mouse, or keyboard attached to the Pi).

Use the options below to navigate around.

IMPORTANT -> The Raspberry Pi 4 does not support USB booting at this time, you will have to use an SD Card for your boot media. More details below.

• Install/”Burn” Raspbian

• Join your WiFi Network on Boot

• Enable SSH on Boot

• First Boot and Setup

Install Raspbian

1. Head on over to https://www.raspberrypi.org/downloads/raspbian/, and download the latest image. For this example I will be downloading the ZIP compressed image for Raspbian Buster Lite.

2. Next, we will need an app that allows us to write the image to an SD card or SSD (whatever we will be booting from on the Raspberry Pi). I like balenaEtcher. You can download etcher from here: https://www.balena.io/etcher/.

NOTE: If you have a shiny new Raspberry Pi 4, like I do now, you cannot boot from USB at this time, so you’ll have to use an SD Card. More information, here: https://www.raspberrypi.org/documentation/hardware/raspberrypi/booteeprom.md

3. Open Etcher, or whichever app you picked to write the image to the card/drive.

4. Connect the drive/SD card to your computer. I will be using an SSD with a USB converter.

(note) Sometimes the voltage on the Pi’s USB ports can drop and affect the SSD attached. I have not had any problems using an SSD with the above linked convereter, but if you encounter issues you may want to look into a powered USB hub. The Pi 3B+ will automagically boot via USB, but if you have the Raspberry Pi v3, check out this link: https://www.raspberrypi.org/documentation/hardware/raspberrypi/bootmodes/msd.md

5. In Etcher, select “Select image“.

6. Now choose “Select drive”, and pick the drive / SD card you recently attached, and click “Continue”.

7. Finally, click “Flash!“

[back to top]

Setup WiFi Network Join on Boot

Now we will want to have the Pi join your WiFi network when it boots up. To do this we will create a file that will tell it what network to join, and its password.

1. If you don’t see the boot volume on your machine, safely disconnect and reconnect the SSD or SD card to your computer.

2. You should now see the boot volume attached to your machine.

3. Using your favorite text editor, create a file named wpa_supplicant.conf.

Here is the content you’ll want for the file (be sure to replace the content in quotes with your SSID and password):

ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev update_config=1 ap_scan=1 fast_reauth=1 country=US  network={ 	ssid="Your network's SSID" 	psk="Your network's password/psk" 	id_str="0" 	priority=100 }

4. Save the file/copy it to the boot volume.

[back to top]

Enable SSH on Boot

Next we will be enabling SSH on boot. To do this we simply need to create an empy file named ssh (no extension), and copy it to the boot volume.

1. Create the empty file (you can use Notepad, or any other text editor to do it) named ssh (no extension). For this example, I will use the Terminal app on OSX to create and copy the file.

cd ~/Desktop/ touch ssh cp ssh /Volumes/boot

2. Now you’ll want to safely eject the boot volume, and attach it to your Raspberry Pi!

[back to top]

First Boot and Setup

Now we will want to plug the the storage device into the Pi (SD card or SSD -> USB converter), and power it on. Once it boots up we will find the IP address it was assigned from the router, and ssh in to change the default ssh password.

1. Once the storage device is attached to your Raspberry Pi, plug it in to power it on!

2. Log into your router, and look for something called attached devices/devices or DHCP client list. Keep refreshing the list, and eventually you should see a device with the hostname raspberrypi. For more help locating a headless Pi, check out this link: https://www.raspberrypi.org/documentation/remote-access/ip-address.md

3. Now that you have the IP address, ssh in! If you’re on Windows, and need some help, check out this article: https://learn.adafruit.com/adafruits-raspberry-pi-lesson-6-using-ssh/ssh-under-windows. For this example I will be using the Terminal app on OSX.
The username is pi, and the default password is raspberry.

ssh pi@192.168.1.29

If you are prompted to trust the host, type / select “yes”.
When prompted for the password, enter raspberry.

4. The very next thing you’ll want to do is change the default password. To do this, use the command (ensuring you are indeed sshed into the Pi): passwd.

(note) You will first be prompted for the current password, so enter raspberry for that. Then select your new password, and confirm it. You will not be able to see anything as you type them out.

[back to top]

Congratulations!

(well, hopefully)

If all went well, you should now have a Raspberry Pi that boots up and joins your WiFi network. You can SSH in to configure things, and do whatever you need to with the device. The files we created earlier (wpa_supplicant.conf and ssh) are removed from the boot volume after the first boot, so you have nothing to worry about there.

Let me know if you have any questions or feedback in the comments, below!

If you’re looking for something to do with your Pi, why not create a Discord bot and run it off it?

Python: Simple Rest API Example and String Formatting

Rest API / String Formatting in Python

How did this adventure begin?

My girlfriend has gone on a research trip recently! Normally I wouldn't start my blog posts out that way, however, it's relevant. Her research vessel actually has some data available, publicly, here: http://webcam.oregonstate.edu/tracker/.

There's some cool data there:

• Temperatures
• Depth
• Wind
• Latitude
• Longitude

I initially thought this was going to be an endeavor in web parsing, but then I looked at the source of the website. I eventually came across this nifty javascript function they are using:

Particularly handy is the URL: https://app.uhds.oregonstate.edu/api/webcam/ship. I am more familiar with PowerShell than Python, so just to test it out before I learned how to get the data in Python, I used PowerShell to see what data was available.

Initial Data Grab Via PowerShell

This was an extremely simple, yet validating part of the equation.

$url = 'https://app.uhds.oregonstate.edu/api/webcam/ship'
$data = Invoke-RestMethod -Uri $url
$data.count
$data[0]

Sweet! That's what we want. Well, what I was looking for.

Making it work in Python

To make this work in Python, I needed to do a few things.

• Get the data, preferably as JSON/a dictionary in Python
• Convert Celsius to Fahrenheit
• Convert Knots to Mph
• Format the data and print it out

Getting the Data

For this to work, we need to use the requests library in Python. So the very first line we'll need is:

import requests

To get the data , I built out this function:

def get_data():
    ship_api_url = "https://app.uhds.oregonstate.edu/api/webcam/ship"
    request_data = requests.get(ship_api_url)
    return request_data.json()

First, I start out by storing the URL we used earlier in the variable ship_api_url:

ship_api_url = "https://app.uhds.oregonstate.edu/api/webcam/ship"

Then, I make the request and store the results:

request_data = requests.get(ship_api_url)

And finally, I return the results as a dictionary from the request converted to JSON:

return request_data.json()

I wanted to test out what I had so far, so our script looks like this:

import requests

def get_data():
    ship_api_url = "https://app.uhds.oregonstate.edu/api/webcam/ship"
    request_data = requests.get(ship_api_url)
    return request_data.json()

data = get_data()
print(data[0])

Annnd the results:

Now to get to work!

Converting Values

Now it was time to start converting some of the values.

I made a function that converts Celsius to Fahrenheit, and then one that converts knots to mph.

First I needed the math:

C to F conversion:

9.0 / 5.0 * temp_in_c + 32

Knots to Mph conversion:

1.1507 * knot

With that in mind, here is the code for the two functions I made:

def convert_c_to_f(temp):
    "Converts Celsius to Fahrenheit."
    conversion = round(9.0 / 5.0 * temp + 32, 2)
    return conversion

def convert_knot_to_mph(knot):
    "Converts wind from knots to mph"
    conversion = round(1.1507 * knot, 2)
    return conversion

I added in some rounding there to ensure we only get up to two decimal places.

String Formatting

The last step for me was to format all of the data, and present it how I wanted it to be presented. To do this I created a function that takes the data and formats it.
It uses a multi line string plus the string format method at the end so I could insert the values that I wanted.

Here's the function I created for that:

def format_data(data_to_format):
    "Formats the data how we want it"
    formatted = """
    Air Temp [{0} F] Water Temp [{1} F]
    Wind [{2} mph] Depth [{3} meters]
    Lat [{4}] Long [{5}]
    Current Location: https://www.google.com/maps/place/{4},{5}
    *note* You may need to zoom out on the map to see the relative location!
    """.format(convert_c_to_f(data_to_format['air_temp']),
               convert_c_to_f(data_to_format['water_temp']),
               convert_knot_to_mph(data_to_format['wind']),
               data_to_format['depth'], data_to_format['lat'], data_to_format['lng'])
    return formatted

You can see in the above code snippet that I used the first value of the data array, and for some of the values used the appropriate conversion functions we created earlier.

So what's it look like, now?

Here's all of the current code:

import requests

def get_data():
    "Gets api data"
    ship_api_url = "https://app.uhds.oregonstate.edu/api/webcam/ship"
    request_data = requests.get(ship_api_url)
    return request_data.json()

def convert_c_to_f(temp):
    "Converts Celsius to Fahrenheit."
    conversion = round(9.0 / 5.0 * temp + 32, 2)
    return conversion

def convert_knot_to_mph(knot):
    "Converts wind from knots to mph"
    conversion = round(1.1507 * knot, 2)
    return conversion

def format_data(data_to_format):
    "Formats the data how we want it"
    formatted = """
    Air Temp [{0} F] Water Temp [{1} F]
    Wind [{2} mph] Depth [{3} meters]
    Lat [{4}] Long [{5}]
    Current Location: https://www.google.com/maps/place/{4},{5}
    *note* You may need to zoom out on the map to see the relative location!
    """.format(convert_c_to_f(data_to_format['air_temp']),
               convert_c_to_f(data_to_format['water_temp']),
               convert_knot_to_mph(data_to_format['wind']),
               data_to_format['depth'], data_to_format['lat'], data_to_format['lng'])
    return formatted

data = get_data()
latest_dataset = data[0]
print(format_data(latest_dataset))

And after running it, here are the results:

Conclusion

I had two goals in doing this.

1. Learn a little bit more Python
2. Make a command for my Python Discord bot that displays the ship's data, as well as the current web cam image (as the website only displayed one OR the other)

I used what we created above, and added a command to my bot which displays the data and the image! Here is the result of that:

Have a question, or know of a different way to achieve the same results? Leave a comment and say hi!

Python: Create a Discord Bot on Your Raspberry Pi Using Discord.py

Create a Discord Bot on Your Raspberry Pi With Python and Discord.py

This article will get you up and running with a Discord bot on your Raspberry Pi using the Discord.Py library.

Note
The code has been updated to reflect Discord.Py’s re-write.
You can always view latest code, and more examples for this post, here: https://github.com/gngrninja/blog/tree/master/DiscordBotPi

This assumes that you've installed and are using Raspbian.

Table of Contents

• Create app in Discord developer console and invite the bot to your server

• Update Raspbian

• Installing Pre-Requisites (for Python 3.6.x Audio/Pip)

• Install Python 3.6.x (get all the async goodness!)

• Install Discord.Py, and get a bot working

• Test out your bot

If you’d like to check out another programming language, check out my series on getting a C# Discord Bot up and running on a Raspberry Pi!

Create app and invite bot to your server

If you already have a bot token, and a bot invited to your server, you can skip over to updating Raspbian.

1. Navigate to the Discord Developer Console

2. Click "New App"

3. Give it a name, and then click "Create App"

4. Click "Create a Bot User"

5. Keep note of the Token, as you'll need that later.

6. Invite the bot to your server

    a. Use the following URL to invite the bot to your server:
        (Replace your_client_id_goes_here with your bot's client ID)

https://discordapp.com/oauth2/authorize?client_id=your_client_id_goes_here&scope=bot&permissions=0

7. You should now see the bot in your server (offline)

Update Raspbian

First you'll want to ensure your Raspbian installation is up to date. To do this, run the following commands:

1. Update package lists

sudo apt-get update

2. Upgrade packages

sudo apt-get upgrade

3. Clean things up

sudo apt-get dist-upgrade

4. Reboot your Pi!

Install Pre-Requisites for Python 3.7.x and Discord.Py

**Note**

The latest version of Raspbian (10.x/Buster) ships with Python 3.7.x (which should work great with discord.py).

If you'd like to upgrade your OS to Buster, follow this article.

To check which version you have, run:

cat /etc/os-release

If you are running Buster (or Stretch), great! Click here to skip to the next step. Otherwise, continue below.

1. Install libssl-dev (to ensure we can use pip when we install the newest version of Python)

sudo apt-get install libssl-dev

2. Install libffi-dev (to ensure audio works with the Discord bot)

sudo apt-get install libffi-dev

3. Install libsqlite3-dev (this will be handy, as it installs libraries needed to install sqlite3 support)

sudo apt-get install libsqlite3-dev

Install Python 3.6.x

1. Grab the latest version of Python 3.x from https://www.python.org/downloads/

wget https://www.python.org/ftp/python/3.6.1/Python-3.6.1.tgz

2. Extract the files, and enter the directory

tar xzvf Python-3.6.0.tgz

cd Python-3.6.0/

3. Run configure to check for dependencies, and get ready to build the Python installation
(This will take 2-5 minutes)

./configure

4. Run make to start compiling the software
(This will take 15-30 minutes)

make

5. Install Python 3.6.x
(This will take 10-15 minutes)

sudo make install

6. Reboot your Pi!

Install Discory.Py, and get a bot working

NOTE: If you are on a fresh Buster install, you may need to install the following before continuing:

sudo apt install python3-pip
sudo apt install python3-cffi
sudo pip3 install discord.py[voice]

1. Install latest version of the Discord library for Python (Discord.Py)

sudo python3 -m pip install -U discord.py[voice]

2. Create a bot to test it out

    a. Create directory

mkdir ~/pipy_bot

    b. Move to that directory

cd ~/pipy_bot

    c. Create an empty file

touch bot.py

    d. Edit the file

nano bot.py

    e. Copy/Paste the following content in the editor (be sure to change your_token_here to your bot's token):

import discord
from discord.ext import commands

TOKEN = ''

description = '''ninjaBot in Python'''
bot = commands.Bot(command_prefix='?', description=description)

@bot.event
async def on_ready():
    print('Logged in as')
    print(bot.user.name)
    print(bot.user.id)
    print('------')


@bot.command()
async def hello(ctx):
    """Says world"""
    await ctx.send("world")


@bot.command()
async def add(ctx, left : int, right : int):
    """Adds two numbers together."""
    await ctx.send(left + right)

bot.run(TOKEN)

    f. Save the file using CTRL+X, and "y"

    g. Run your bot!

python3 bot.py

Test Out Your Bot

1. Go to the Discord server where you've invited your bot to , and try issuing the ?help command

2. Once you verified that works, try the other ones as well!

Have a question or idea? Leave a comment below, or contact me here!

[Back to top]
